VLX 120 Glass Railing System

VLX 120 Glass Railing System in Pasadena, CA | Lightwell Windows Pasadena

The VLX 120 is a premium aluminum-framed glass railing system built for homeowners and architects who want clean sightlines without sacrificing structural integrity. It pairs frameless glass panels with a slim 2.20-inch aluminum profile, so you get the open, floating look of frameless glass with the long-term stability of a metal frame. Lightwell Windows Pasadena is an authorized ViewLux installation partner, which means we order direct, install to factory spec, and keep your warranty intact. If you’re planning a deck, balcony, stairwell, or pool enclosure in Pasadena, call (626) 628-2308 for a project quote.

Call (626) 628-2308

Product Overview – VLX 120 Glass Railing System

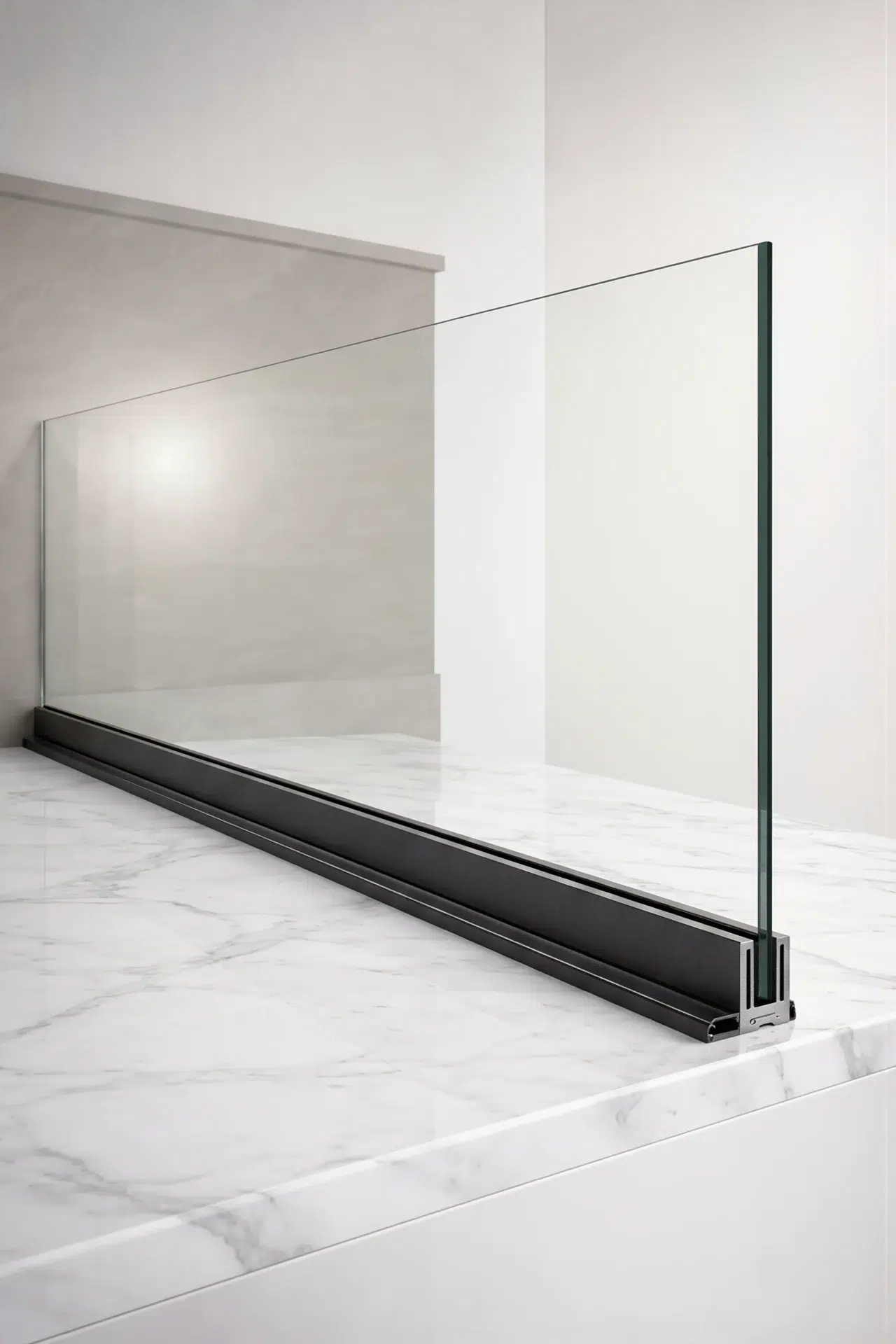

The VLX 120 answers a question that’s been asked a lot in Pasadena’s remodeling market: can you have a truly open view without wobble, corrosion, or code headaches? The answer is yes, when the system is engineered the way this one is. The glass panels sit nearly edge-to-edge, and the aluminum channel that holds them is deliberately thin. That means from inside the house, the railing almost disappears. From the street, it reads as a crisp architectural line rather than a bulky barrier.

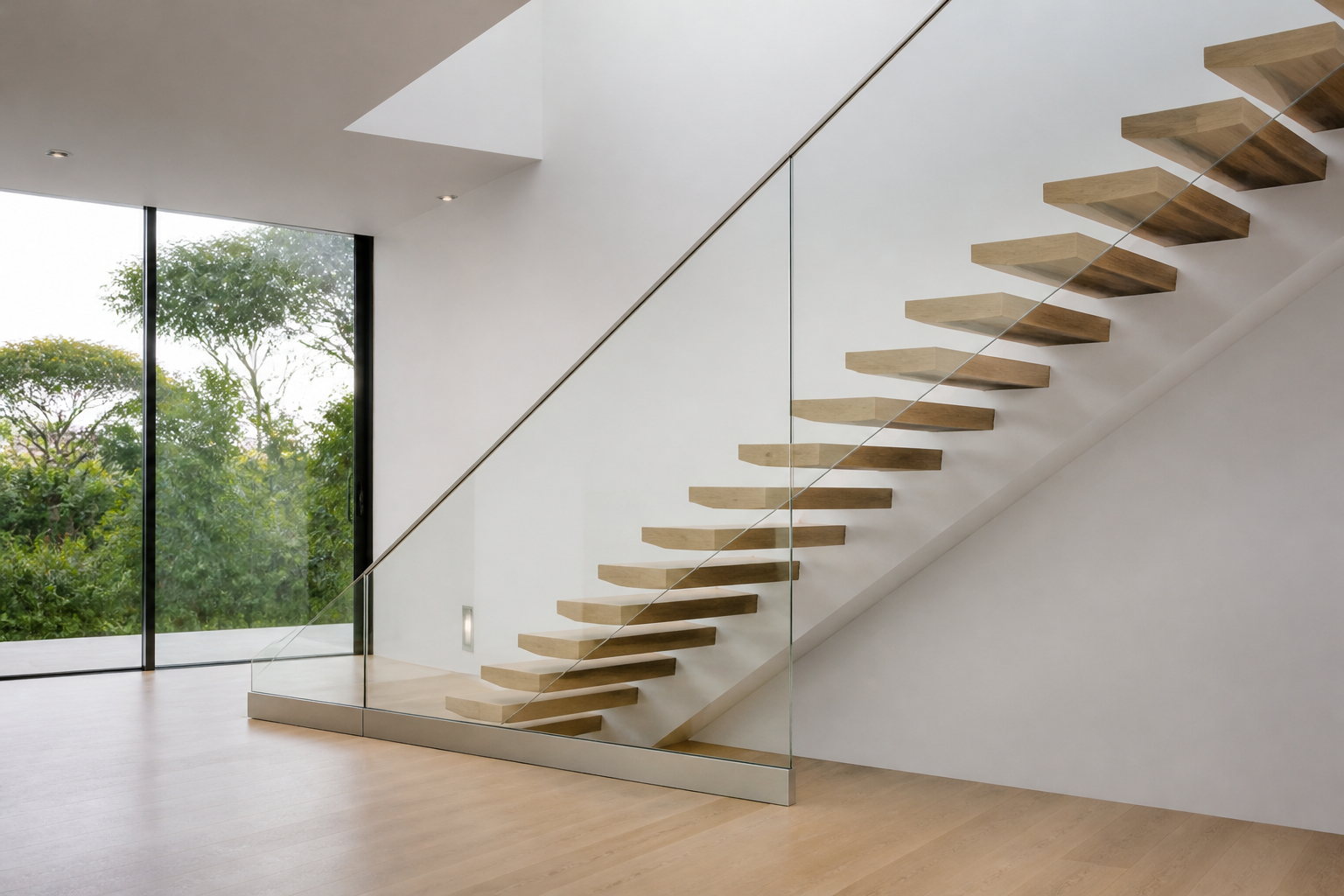

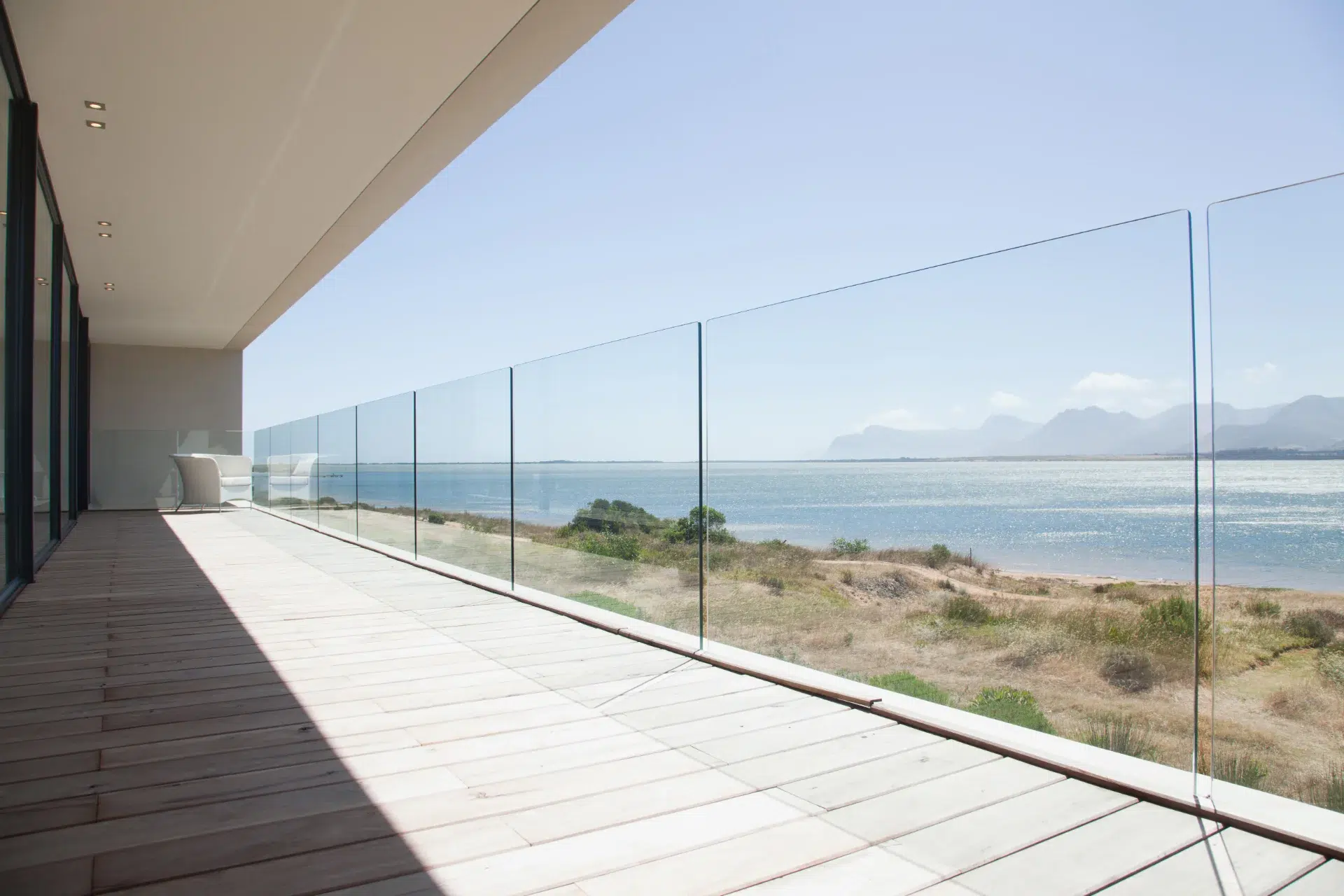

We see this system specified most often on mid-century modern homes in the San Rafael Hills, contemporary builds in South Pasadena, and hillside decks where the view is the whole point. The stainless steel hardware resists the marine-layer moisture that drifts up from the coast on June mornings, and the aluminum won’t pit or flake the way painted steel does after a few Pasadena summers. It’s rated for interior and exterior use, so the same profile can run from an upstairs hallway overlook straight out onto a balcony without a visible material change.

Buyers choose the VLX 120 over budget railing because of dimensional stability. The 0.079-inch wall thickness on the aluminum extrusion is thicker than what you’ll find on entry-level systems, which translates to less flex when someone leans against the glass. For a family with kids or a home that hosts a lot of gatherings, that matters.

Technical Specifications

Here’s what you’re getting with the VLX 120, in plain numbers and options.

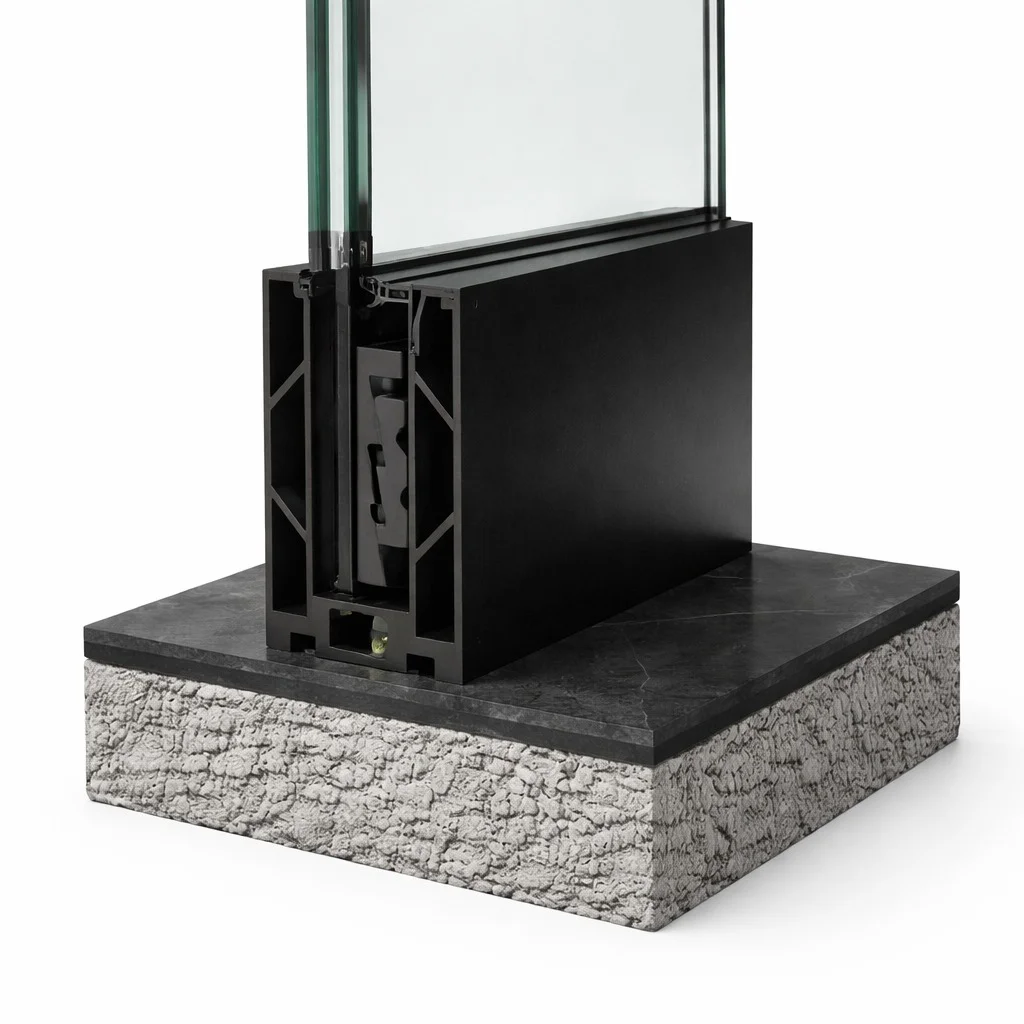

• Profile wall thickness: 0.079″ aluminum extrusion, engineered for rigidity across custom spans
• Profile width: 2.20″ visible face, slim enough to preserve sightlines
• Maximum span: Custom panel sizing available, fabricated to your measured openings
• Glass options: Clear Tempered, Frosted Tempered, Low-Iron Tempered, Laminated Safety
• Finish options: Premium Black, Brushed Stainless, Anodized Silver, Bronze, Champagne, Pure White
• Installation standard: AAMA 2400/2410 compliant, AAMA 812 foam sealant on all perimeter joints

All glass is tempered to safety glazing standards, and the laminated option adds a second layer of protection for elevated decks and high-traffic areas. Frames are thermally broken. Panels are fabricated to order, so a 9-foot run and a 4-foot stair section are both cut precisely before they reach your Pasadena job site.

Performance Features

Thermal Efficiency – The VLX 120 uses thermal break technology in the aluminum profile, which interrupts heat transfer between the exterior face and interior side of the rail. On a Pasadena afternoon when the sun is hitting a west-facing balcony rail at 4 p.m., the inside face stays noticeably cooler. NFRC-rated energy performance applies to the system when glazed as specified.

Acoustic Performance – Glass railing isn’t usually the first thing people think about for sound control, but on a busy street like Colorado Boulevard or near the 210 freeway corridor, a laminated glass panel deadens road noise better than open picket railing. The VLX 120’s lamination option and tight perimeter sealing reduce the sound that passes between the street and your patio.

Airtightness & Weather Seal – Every perimeter joint is sealed with AAMA 812 low-expansion foam, which stays flexible through thermal cycling. Pasadena swings from 40-degree winter nights to 100-degree summer afternoons, and that movement is what eventually breaks a hard caulk joint. The AAMA 812 spec is exactly what prevents that failure mode.

Waterproofing – The aluminum base channel is designed to shed water away from the mounting surface. Combined with the perimeter seal, water doesn’t sit against the frame or wick into the deck substrate. That’s critical on Pasadena hillside decks where wood joists are exposed to rain during El Niño winters.

Wind Resistance – Elevated decks in the hills above the Rose Bowl catch real wind. The VLX 120 is wind-load rated for the local climate requirements, and the 0.079-inch wall thickness gives the frame the stiffness needed to hold glass panels steady in gusts that would make thinner systems chatter.

Security & Hardware – Stainless steel hardware throughout. No zinc-plated fasteners that rust after two seasons. The tempered glass is impact-resistant by nature, and the laminated option raises that further. For homeowners with second-story decks or pool areas, the laminated glass adds a meaningful safety margin.

Color & Glass Options

The VLX 120 comes in six finishes, and the right one depends on your home’s architecture. Premium Black is the most requested in Pasadena right now. It works beautifully on modern farmhouse builds in the Linda Vista area and gives decks a sharp, architectural frame line that recedes visually at distance. Brushed Stainless has a soft, satin metal look that pairs well with stainless cable railing accents or outdoor kitchens. Anodized Silver is the classic aluminum appearance, bright but not glossy, and it’s a good match for mid-century homes with aluminum window frames. Bronze reads warm and grounded, an excellent choice for Spanish Revival or Craftsman homes where black feels too harsh. Champagne is a warm metallic tone that suits homes with custom stucco and warm wood accents, popular in pockets of Bungalow Heaven. Pure White creates a crisp, coastal feel and is often used on pool enclosures and second-story balconies where the railing needs to feel light.

For glass, Clear Tempered gives the truest unobstructed view. Low-Iron Tempered removes the greenish tint that standard glass has, so the view from a San Gabriel Mountains-facing deck looks accurate, not tinted. Frosted Tempered adds privacy without blocking light, useful for front balconies close to the street or shared walls. Laminated Safety is the strongest option, two layers of glass bonded with an interlayer. We recommend it for elevated decks, pool edges, and any railing over 30 inches from ground level.

Installation by Lightwell Windows Pasadena in Pasadena

Installation quality determines whether a glass railing system performs for five years or twenty-five. We’ve been installing ViewLux products in Pasadena long enough to know exactly where things go wrong when they go wrong, and our process is built around preventing that.

It starts with a pre-install inspection of the mounting substrate. If a deck ledger is soft or a concrete curb is out of level by more than the system tolerance, we surface that before any panel is ordered. Then we set the base channel level, plumb, and square. On a long balcony run, even a quarter-inch deviation amplifies across the span and shows up as uneven glass gaps. We don’t let that happen.

All perimeter joints are sealed with AAMA 812 low-expansion foam, and the installation follows AAMA 2400/2410 standards for window and door installation as they apply to glazed railing systems. After the panels are set, we run a water test on the base channel to confirm drainage and seal performance, then clean the glass and haul away all packaging.

Improper installation voids the manufacturer warranty. We’ve had Pasadena homeowners call us to fix railing installed by general contractors who set the channel directly on unsealed wood, used the wrong fasteners, or skipped the perimeter foam. By the time the glass starts rattling, the fix is often a full re-set. Doing it right the first time costs less.

For Pasadena specifically, the local conditions that affect railing installation are thermal movement, hillside wind exposure, and the city’s permitting process for decks and balconies. We’re familiar with Pasadena’s building department and can coordinate permit paperwork and inspections as part of the project.

Frequently Asked Questions – VLX 120 Glass Railing System

Get a Quote – VLX 120 Glass Railing System in Pasadena

If you’re planning a railing project in Pasadena, Altadena, South Pasadena, or the surrounding foothill communities, let’s get you real numbers. We’ll measure on-site, confirm your span requirements, and provide a written line-item quote with no change-order surprises. Call (626) 628-2308 to schedule your free measurement, or stop by to see a VLX 120 sample panel in person.

Written by the team at Lightwell Windows Pasadena, your authorized ViewLux installation partner serving Pasadena, CA.
