VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in Pasadena, CA | Lightwell Windows Pasadena

The VLX 80 Fixed / Picture Window is a floor-to-ceiling glass wall built on a slim 1.97-inch aluminum profile. It’s the window you choose when the view matters more than the frame. Pasadena homeowners in craftsman bungalows off Orange Grove, mid-century ranches in the San Rafael Hills, and new builds near Old Town all use this window to pull in natural light without visible hardware or bulky mullions getting in the way.

Call (626) 628-2308

Lightwell Windows Pasadena is an authorized ViewLux installation partner, which means we sell the product, install it to AAMA 2400/2410 standards, and stand behind the warranty. If you’re comparing picture windows in Pasadena, call us at (626) 628-2308 for a line-item quote. Estimates are free, and we measure every opening ourselves.

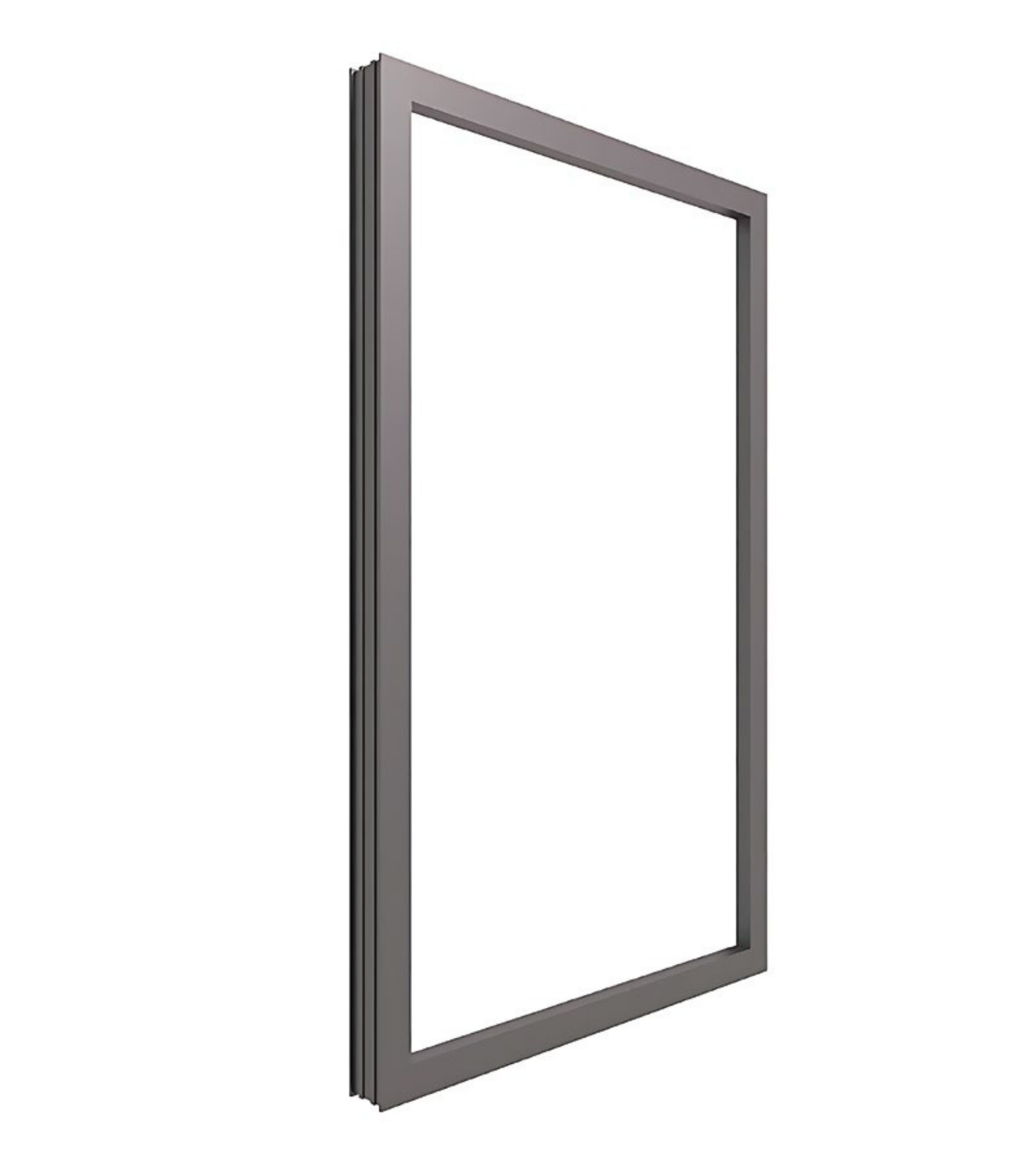

Product Overview – VLX 80 Fixed / Picture Window

Picture windows are architectural statements. They don’t open, they don’t tilt, they don’t slide. They frame a view and let light pour through. The VLX 80 takes that idea and strips away everything that isn’t glass. The frame itself measures just under two inches wide, which means the visible surface is roughly ninety percent glass on most openings. No visible hinges, no locks, no operator hardware. Just a clean reveal and a sealed unit.

At the center of the design is the 0.079-inch wall thickness in the aluminum extrusion. That’s a deliberate balance: thick enough to carry a window up to 120 inches wide without bowing or sagging, thin enough that the sightline stays minimal. The aluminum is thermally broken, which interrupts the conductive path between the exterior and interior frame. Without that break, an aluminum window in a Pasadena summer becomes a heat radiator. With it, the frame stays within a few degrees of the indoor temperature, and condensation is dramatically reduced.

Where does it belong? Anywhere you want light and a fixed view. Living rooms with a mountain sightline. Stairwell landings that need daylight but not ventilation. Dining rooms facing a backyard garden. We’ve installed the VLX 80 in Pasadena restoration projects where the original steel windows were rusting out, and in new construction where architects specified floor-to-ceiling glazing on the rear elevation. It pairs well with operable windows in the same line, creating a wall of glass with ventilation where you need it and pure view where you don’t.

Technical Specifications

Here’s what the VLX 80 Fixed / Picture Window delivers on paper, translated into terms that matter for a Pasadena home:

• Frame profile width: 1.97 inches (slim sightline for maximum glass area)
• Aluminum wall thickness: 0.079 inches (structural rigidity for large-format glazing)
• Maximum width: up to 120 inches, depending on glass weight and code requirements
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Operation: Fixed / non-operable picture unit
• Hardware: None visible – clean reveal on all four sides
• Thermal performance: Thermally broken, NFRC-rated
• Installation standard: AAMA 2400/2410 with AAMA 812 perimeter sealant

The glass spec drives the weight and the wind-load rating. A 120-inch laminated unit with Low-E coating weighs significantly more than a standard clear insulated glass unit, and the frame geometry accounts for that. When we quote a VLX 80 for your Pasadena project, we run the span, the glass makeup, and the exposure together to confirm the unit meets local wind-load requirements before it’s ever ordered.

Performance Features

Thermal Efficiency – The thermal break in the VLX 80 frame separates the interior and exterior aluminum extrusions, cutting conductive heat transfer. Pair the frame with Low-E coated glass and the unit delivers NFRC-rated energy performance that lowers cooling costs through Pasadena’s hot, dry summers. On a west-facing wall in August, a non-thermally-broken aluminum frame gets hot enough to feel from across the room. This one doesn’t.

Acoustic Performance – A fixed window seals tighter than any operable window, simply because nothing moves. The VLX 80’s fixed design, combined with laminated glass, cuts traffic noise from the 210 and background city hum significantly. If you’re near Colorado Boulevard during parade season or backing up to a busy side street in Pasadena, laminated glass is the upgrade worth paying for.

Airtightness & Weather Seal – The perimeter of the frame seats into the rough opening with an AAMA 812 low-expansion foam sealant applied to every joint. That means no unfiltered air sneaks in around the frame. The fixed sash has no weep system, no movable tracks, and no worn weatherstripping to replace. Airtightness is inherent to the design, not maintained by subpar caulk lines that dry out in the Southern California sun.

Waterproofing – Picture windows are only as dry as their installation. The VLX 80 frame is designed to shed water down and away from the glazing channel, and our Pasadena installers seal the full perimeter per AAMA 812. We also slope and flash the sill pan properly so wind-driven rain during the rare heavy Pasadena storm can’t find a path inside. Water intrusion in a fixed window is almost always an installation failure, not a product failure.

Wind Resistance – The 0.079-inch wall thickness and structural aluminum extrusion give the VLX 80 the backbone to handle high-velocity wind events, including Santa Ana conditions that blast through the San Gabriel Valley in the fall. Large fixed windows catch a lot of wind load, and a flimsy frame will visibly flex. The VLX 80 is engineered for spans up to 120 inches in exposed locations when specified correctly.

Security & Hardware – Since the window doesn’t open, there’s no latch to pick, no track to jimmy, no sash to lift. Laminated glass adds a shatter-resistant layer that holds together under impact. For ground-floor Pasadena installations, or any window facing a street or alley, we recommend laminated glazing. It’s the same class of glass used in storefronts and it takes real effort to get through.

Color & Glass Options

The VLX 80 comes in six finishes, and the right choice depends on the house. Premium Black is the most requested finish on modern and contemporary homes in Pasadena, especially paired with white interior walls and warm wood floors. It reads architectural and confident. Pure White blends into traditional and transitional interiors, disappearing against painted trim. Anodized Silver gives a clean, industrial presence that suits mid-century and commercial-influenced residential design. Bronze and Champagne are warmer metallic tones that work beautifully on Spanish revival and Mediterranean homes, where cooler silver feels out of place. Teak Wood is a woodgrain finish that gives the appearance of timber without the rot, warping, or painting headaches that real wood windows bring to Pasadena’s dry-rot-prone older homes.

On the glass side, Clear and Low-E cover most residential needs. Low-E is the spec we recommend by default for any Pasadena wall that gets direct sun. Frosted works for bathrooms, side yards, or anywhere you need privacy without window coverings. Tempered is required by code for windows near doors and low to the floor. Laminated adds impact resistance and noise reduction. Gray Tint and Black Tint control glare and solar gain on large east- and west-facing glass walls where views out matter more than the world seeing in.

Installation by Lightwell Windows Pasadena in Pasadena

A VLX 80 picture window is only as good as the crew that sets it. The window itself is sealed in a factory, but the frame-to-wall connection is made on-site, in your house, and that’s where mediocre installations go wrong. An improperly flashed picture window will leak within the first rain. A frame set out of square will bind the glass and eventually crack the seal. That’s why Lightwell Windows Pasadena controls the install end-to-end.

Our process starts with a pre-install inspection. We measure the rough opening ourselves, check the framing for rot or movement (common in older Pasadena homes built before modern shear wall standards), and confirm the header can carry the span. Then we order the window to the exact opening, not the other way around.

On install day, we set the frame level, plumb, and square, shimming as needed so the glass sits perfectly within the frame channel. The perimeter gets a continuous AAMA 812 low-expansion foam sealant bead, and the exterior gets flashed to shed water down and out. Every installation follows AAMA 2400/2410 standards, which is the industry benchmark for window installation. After the window is set, we perform a water test on the sill and lower corners, then clean the job site and haul the old window away if one was removed.

Pasadena’s climate plays a role here. Dry heat, low humidity, and sun exposure that runs strong from May through October mean sealants need to be UV-stable and the frame needs to handle significant thermal cycling. The VLX 80’s powder-coated finishes hold up to that exposure significantly better than raw or anodized-only aluminum in the long run. If you’re replacing windows in a Pasadena historic district, we also help confirm the finish and profile meet any design review requirements before you commit.

One warning, straight from us: installing this window yourself or hiring a generalist handyman will void the manufacturer warranty. ViewLux warranties the product when it’s installed by an authorized partner like us, using the specified installation protocol. The warranty is part of what you’re buying. Protect it.

Frequently Asked Questions – VLX 80 Fixed / Picture Window

What is the lead time for the VLX 80 Fixed / Picture Window?
Most VLX 80 orders arrive in Pasadena within 3 to 5 weeks from approval, depending on glass type and finish. Custom sizes over 96 inches and specialty glass like laminated or tinted units can push closer to 6 weeks. We confirm lead time when you lock in your spec, and we don’t start cutting the opening until the window is physically in our Pasadena warehouse. Call (626) 628-2308 to start the order.

Does the VLX 80 qualify for energy tax credits?
It can, but only when you spec Low-E glass that meets current ENERGY STAR requirements for the Southern California climate zone. The frame alone doesn’t drive the credit, the glass package does. We’ll tell you upfront whether the spec you’re considering qualifies, and we provide the documentation you need for your tax preparer. Ask about it when you request your free estimate.

What warranty comes with the VLX 80 Fixed / Picture Window?
ViewLux provides a manufacturer warranty on the frame and glass, and Lightwell Windows Pasadena backs our installation with a separate workmanship warranty. The manufacturer warranty only applies when the window is installed by an authorized ViewLux partner using AAMA-compliant methods. That’s what we do on every job in Pasadena. Exact warranty terms depend on the glass package, and we’ll give them to you in writing with your quote.

Can I customize the size of the VLX 80?
Yes. The VLX 80 is built to the dimensions of your rough opening, in widths up to 120 inches. We measure first, then order. There’s no stock-size limitation the way there is with off-the-shelf windows from a lumberyard. If you want a single fixed pane spanning a 10-foot living room wall, we’ll confirm the structural requirements and order it to size. Call (626) 628-2308 and we’ll schedule your measurement.

How do I maintain aluminum frames in Pasadena?
Not much. Wash the frame with mild soap and water twice a year to remove Pasadena’s fine dust and pollen. Check the exterior sealant bead once a year for cracking or shrinkage, which the sun can cause over a decade or more. The powder-coated finishes don’t need repainting, and the glass cleans with standard glass cleaner. If you notice condensation between the panes, that’s a failed seal, not something to fix on your own. Call us and we’ll evaluate whether a replacement unit is warranted.

Get a Quote – VLX 80 Fixed / Picture Window in Pasadena

If you’re planning a picture window project in Pasadena, start with a free on-site measurement. We’ll spec the VLX 80 for your exact opening, walk through glass and finish options face to face, and give you a written line-item quote you can compare. No pressure, no ballpark guesses.

Call (626) 628-2308 to schedule your measurement and get this window priced for your home.

Written by the team at Lightwell Windows Pasadena, an authorized ViewLux installation partner serving Pasadena, CA and the San Gabriel Valley.
