Get your free estimateVLX 100 Arched / Custom Door in Pasadena, CA | Lightwell Windows Pasadena

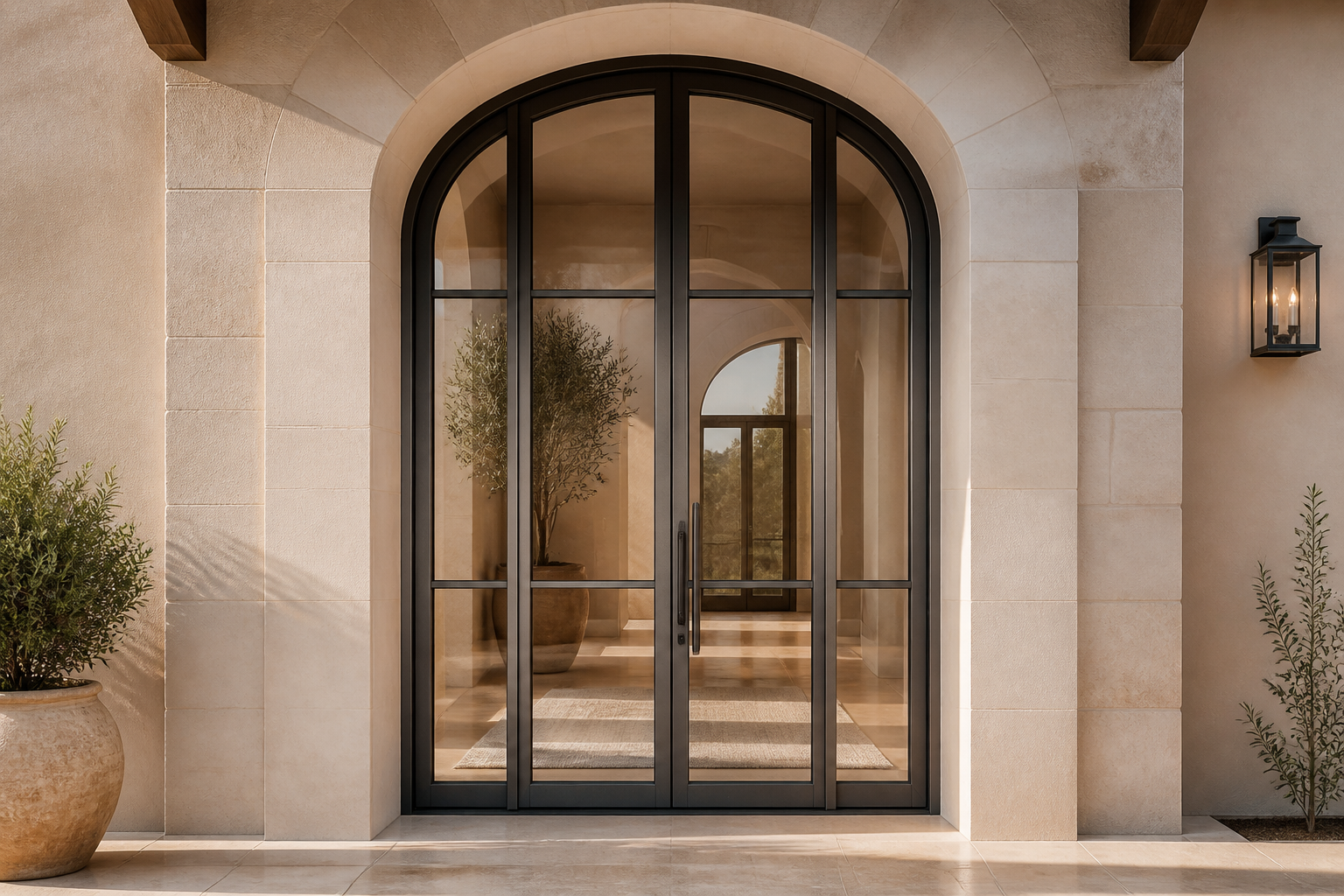

The VLX 100 Arched / Custom Door is a CNC-bent aluminum entryway built for homeowners who want an entrance that actually gets noticed. It’s the kind of door you see on Spanish Colonial, Mediterranean, or mid-century modern homes across Pasadena – a curved architectural statement that standard rectangular doors simply can’t deliver. Lightwell Windows Pasadena is an authorized ViewLux installation partner, which means you’re getting the product from a company that has been trained on this exact system, not a general contractor guessing at the details. We measure, order, and install these doors throughout Pasadena, from Bungalow Heaven to the San Rafael Hills. Call (626) 628-2308 to talk about your project.
Product Overview – VLX 100 Arched / Custom Door
The VLX 100 exists because someone asked a simple question: why does a front door have to be a rectangle? The answer is it doesn’t. This door is fabricated on a CNC bending machine that curves the aluminum frame to whatever radius your architect or designer specifies. That means the arch isn’t an afterthought – it’s engineered into the extrusion itself, with the same wall thickness and structural integrity at the crown of the curve as at the base. No flat door frame with a curved filler panel. No compromises.
Aluminum is the obvious choice here. Wood arches rot in Pasadena’s wet winters and warp in the dry heat of August. Vinyl can’t hold this kind of profile. Aluminum keeps its shape, spans wide openings, and carries the weight of heavy glass without sagging over time. The VLX 100 uses a 0.098-inch wall thickness and a 2.56-inch profile width, which gives it the structural backbone to handle a true arch while still looking slim and deliberate. It’s a door that reads as architecture, not just an opening.
Most buyers who look at the VLX 100 in Pasadena are doing either a full custom build or a high-end remodel. They want the entry to set the tone for the entire house. And because every unit is custom fabricated to order, there’s no standard size constraint – if your opening is twelve feet tall or shaped like a segmental arch rather than a full radius, that’s a conversation, not a dead end.
Styles & brands we work with
Technical Specifications
Here’s what the VLX 100 Arched / Custom Door is made of, at the numbers that matter:
- Frame material: Custom-bent extruded aluminum, CNC-fabricated to your specified arch radius
- Wall thickness: 0.098 inches
- Profile width: 2.56 inches
- Maximum span: Custom fabricated to order – no standard size ceiling
- Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
- Thermal performance: Thermal break technology, NFRC-rated
- Installation standard: AAMA 2400/2410 compliant
The thermal break is worth understanding. Aluminum conducts temperature easily, which is why an unbroken aluminum frame feels cold in January and hot in July. The VLX 100 separates the interior and exterior metal with a non-conductive barrier, so your Pasadena entryway doesn’t become a heat exchanger. It’s standard on this series, not an upgrade.
Performance Features
Thermal Efficiency
The VLX 100 carries a thermal break that meets NFRC energy performance criteria. For a Pasadena home, that means less heat bleeding out during cold snaps and less solar gain pushing through in September. Pair it with Low-E glass and the door does real work for your utility bill.
Acoustic Performance
An arched front door is still a front door – it needs to keep street noise on the street. Laminated glass on the VLX 100 cuts sound transmission noticeably, which matters on busier Pasadena streets like Hill Avenue or anywhere near the 210. You want the architectural statement, not the traffic soundtrack.
Airtightness & Weather Seal
Every perimeter joint gets AAMA 812 low-expansion foam sealant. That’s the standard that stops drafts, dust, and the fine grit that Santa Ana winds push through the San Gabriel Valley in the fall. The seal isn’t a bead of caulk squeezed in after the fact – it’s part of the install spec.
Waterproofing
Pasadena gets roughly 20 inches of rain a year, and most of it arrives in a handful of heavy storms. The VLX 100’s sill design and perimeter sealing are built to handle that deluge pattern without letting water find a path under the threshold. Mist prevention is part of the glass package specification.
Wind Resistance
Arched doors have a lot of surface area, so wind load matters. The VLX 100 is wind-load rated for the local climate requirements that apply to Pasadena’s hillside and canyon-adjacent properties. The rating isn’t a sticker – it’s calculated for your specific opening and exposure.
Security & Hardware
A door this size needs hardware that can carry it. The VLX 100 accepts multi-point locking hardware, and impact-resistant laminated glass is available as an option. If security is a priority, we’ll spec laminated glass and reinforce the hinge points during the install. Aluminum frames don’t flex under force the way hollow vinyl does.
See the difference
Before
After
Before
After
Before
AfterColor & Glass Options
Six finishes cover most of what we see in Pasadena. Premium Black is the current default for modern builds – it reads sharp against white stucco and works beautifully with black-framed windows. Pure White fits the Monterey Colonial homes in the Madison Heights neighborhood. Anodized Silver has that raw metallic quality that suits mid-century modern or industrial design. Bronze is the quiet luxury option – darker than anodized but warmer than black, and it ages well. Champagne gives a soft, reflective warmth that pairs with travertine and limestone entries. Teak Wood mimics the warmth of a wood door without the maintenance – it’s the finish we recommend for Craftsman homes near the Arroyo Seco when you want the period look with modern aluminum performance.
For glass, Clear lets in maximum light. Frosted and Obscure give you privacy without sacrificing brightness – common for front entries where you don’t want a direct sightline into the living room. Low-E adds an invisible coating that reflects heat, which matters for west-facing doors in the San Gabriel Valley. Tempered glass is safety-rated and required in some configurations. Laminated adds impact resistance and sound reduction. Tempered and laminated can be combined.
Installation by Lightwell Windows Pasadena in Pasadena
An arched custom door lives or dies by its installation. The tolerance on a curved aluminum frame is measured in fractions of an inch. If the rough opening is out of square by a quarter inch, the arc won’t seat correctly and the seals won’t compress evenly. That’s when you get drafts, water intrusion, or a door that binds in its frame.
Our installation process in Pasadena starts with a pre-install inspection of the rough opening. We measure the opening at multiple points along the curve, check level and plumb on the jambs, and verify the threshold sits flat. If something’s off, we fix it before the door goes in – not after.
The install itself follows AAMA 2400/2410, which is the industry standard for properly installed fenestration products. We set the door level, plumb, and square, shim it correctly at the hinge points and lock points, and anchor it to code. Every perimeter joint gets AAMA 812 low-expansion foam sealant, which creates an airtight, watertight envelope. Then we do a water test around the base and threshold before we call the job done.
One thing Pasadena homeowners sometimes don’t realize: the ViewLux manufacturer warranty is contingent on professional installation. If you buy the door and have a handyman install it, and the door fails because of a bad install, the warranty doesn’t cover it. Lightwell Windows Pasadena is an authorized ViewLux partner, which means our installations are warranty-safe. The training, the calibration, the sealant spec – ViewLux signed off on us doing this work.
Pasadena also has specific building code requirements for doors in certain zones, including energy compliance under Title 24 and structural requirements in hillside areas. We handle the permits and inspections, and our installs pass. That’s not a bonus. It’s the baseline.
Frequently Asked Questions – VLX 100 Arched / Custom Door
Because every VLX 100 is fabricated to your specific dimensions and arch radius, typical lead time is 6 to 10 weeks from final measurements to delivery, depending on the glass package and finish you select. Custom fabrication adds time compared to a stock door, but you’re getting a door built for exactly one opening: yours. Call (626) 628-2308 and we’ll give you a current lead-time estimate based on the options you want.
It may, depending on the glass package and the specific federal or state incentives active at the time of purchase. The thermal break and Low-E glass options are designed to meet NFRC energy performance ratings, which is the benchmark most programs use. We’ll review your eligibility during the quote process so you know exactly what applies to your Pasadena home. Call (626) 628-2308 for details.
The VLX 100 carries the manufacturer’s warranty from ViewLux, which covers defects in materials and workmanship on the frame and glass. That warranty is only honored when the door is installed by an authorized partner like Lightwell Windows Pasadena, and we stand behind our installation work with our own craftsmanship guarantee. Call (626) 628-2308 and we’ll walk you through the exact coverage.
Yes. The VLX 100 is fabricated to order, which means the arch radius, overall height, width, and glass layout are all custom. Full radius, segmental, elliptical – you specify it, and the CNC bending process creates the frame to match. We’ll take field measurements at your Pasadena property to confirm the exact opening dimensions before anything goes into production. Call (626) 628-2308 to schedule a measurement.
Aluminum is the lowest-maintenance door material available. Wash the frame twice a year with mild soap and water, keep the track and threshold clear of debris, and inspect the perimeter seal annually. The powder-coated finishes don’t fade, peel, or require repainting. If you’re in a coastal-influenced part of Pasadena and notice any finish wear, touch-up paint is available through us. Call (626) 628-2308 if you need maintenance guidance specific to your door.
Get a Quote – VLX 100 Arched / Custom Door in Pasadena
The VLX 100 is a door you’ll walk through every day for decades. Get it right the first time. Lightwell Windows Pasadena provides free on-site measurements, a written line-item quote, and fixed pricing with no change orders. Call (626) 628-2308 to schedule your free estimate and see what an arched entryway can do for your Pasadena home.
Written by the team at Lightwell Windows Pasadena, authorized ViewLux installation partners serving Pasadena, CA.
